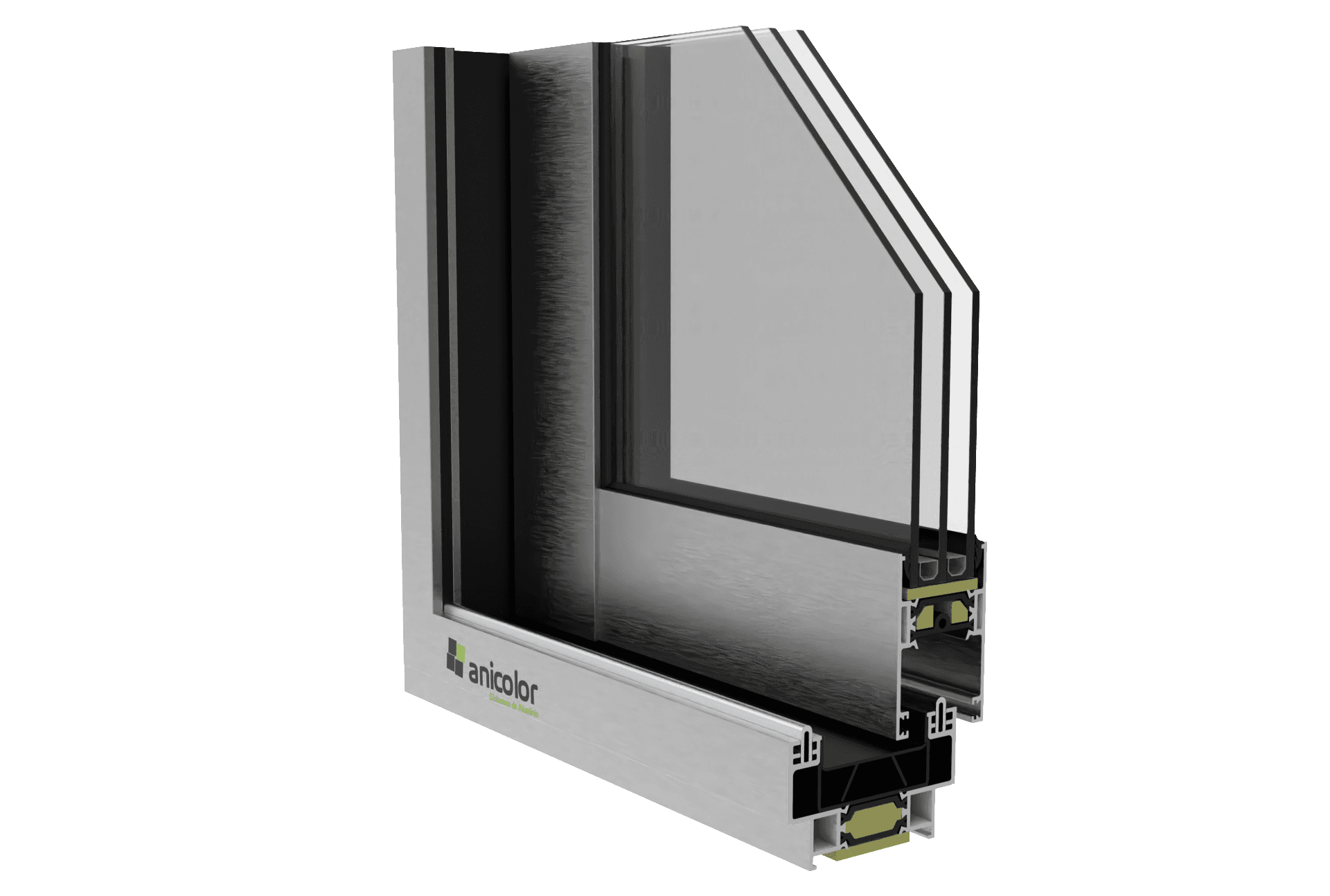

CX

System Features

The CX minimalist sliding system combines elegance, high energy efficiency, and acoustic comfort. This system is ideal for those seeking a contemporary solution that maximizes natural light, provides excellent thermal and acoustic insulation, and enhances modern space aesthetics.

Aluminum Profiles
• Extruded aluminum profiles in 6060 aluminum alloy, compliant with NP EN 12020-02 architectural standards.
• Profiles with thermal break achieved by inserting 32 mm polyamide insulating bars.
• Average aluminum profile thickness of 1.6 mm.

Fixed Frames
• Fixed frame depth starting from 60 mm;
• Thermal break obtained through 32 mm polyamide bars;
• AISI 304 stainless steel sliding guide to prevent component wear.

Sliding Frames
• Movable frame depth of 48 mm.
• Movable frames with thermal break, achieved through 32 mm polyamide bars;
• Watertightness ensured through Foam Seal gaskets and Fin-Seal pile weatherstripping;
• Central movable frames bonded to the glass with structural silicone;
• Double or triple insulated glazing with secondary silicone sealing, ranging from 28 mm to 36 mm total thickness.

Sizing and Operability
• Minimum – maximum leaf dimensions: 300 mm - 2200 mm (L); 500 mm - 3200 mm (H);
• Maximum weight: Up to 250 kg per leaf for windows or balcony doors;
• Available Sliding configurations: 2, 3, 4, 6, and 8 movable and/or fixed leaves.
• Available Galandage cconfigurations (pocket sliding doors): 1, 2, 3, 4, 6, and 8 leaves;
• Opening system: Multipoint hardware with 2 or more locking points;
• Offset handles (left or right) for multipoint hardware, allowing easier operation;
• Corner-opening solutions and fixed panel integration within the sliding system.

Rendimiento
• Certified system by a notified laboratory for Initial Type Testing (ITT) in accordance with EN 14351-1:2006+A2:2019, ensuring compliance with CE marking requirements.
