CTe

125mm

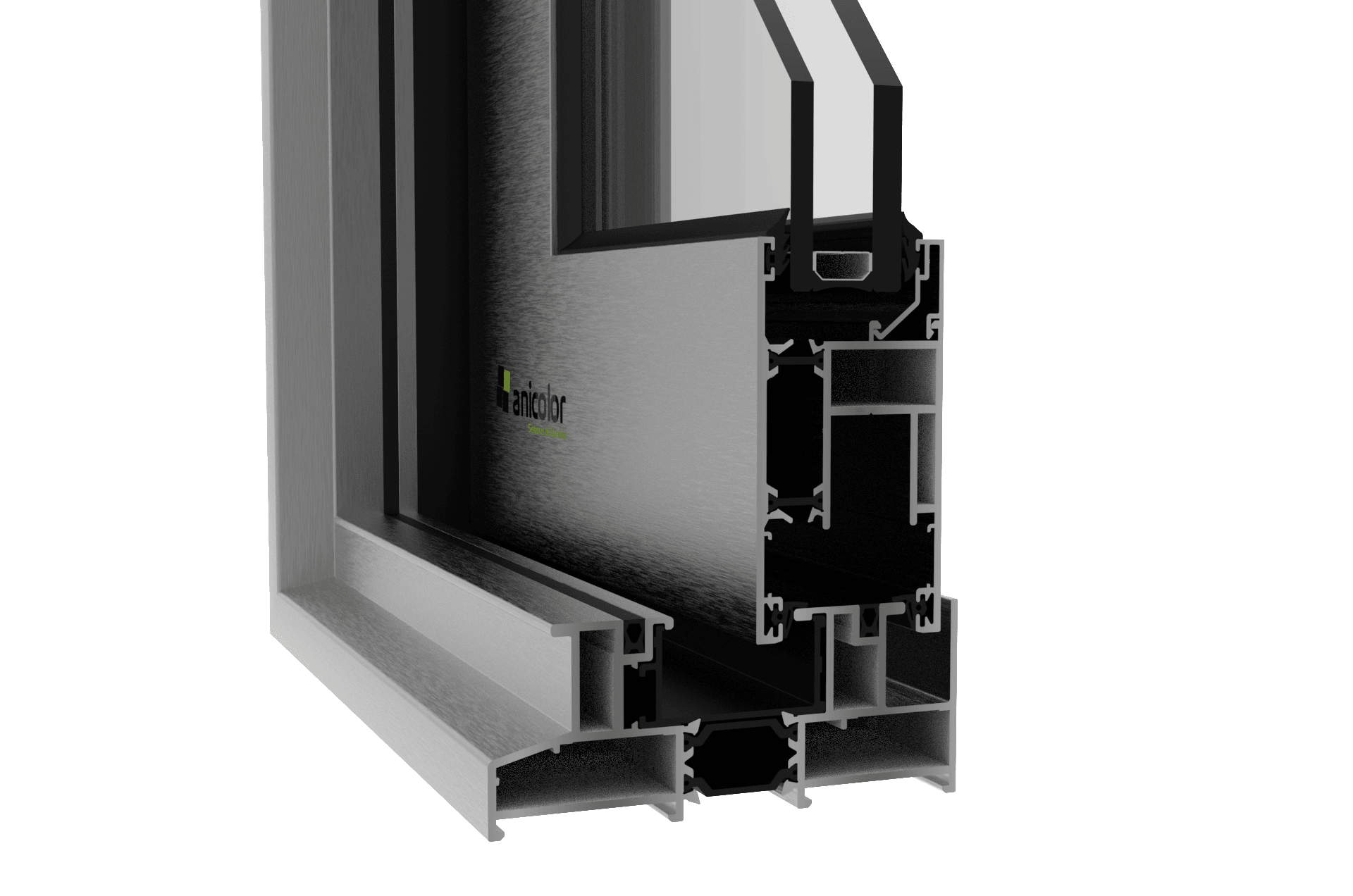

Sliding / liftable system with thermal break, obtained by insertion of insulating sticks of polyamide (with 14.6 mm at the rim and 24 mm at the fitment), reinforced with 25% of glass fibre.

The sections of rim and fitment are 123 mm and 50,6 mm respectively, with an average thickness of aluminium profiles of 2 mm.

This slide system is specific for large leaves. Its operation is based on a mechanical system mounted together with the leaves, which allows the elevation of these at it opening, and it descent when it comes to its close.

This system allows a greater easer in opening of the leaves and greater sealing to the when they are closed.

Allows dimensions of 3.35(L) x 3.20 (H) meters per leaf and a maximum weight of 400 (Kg / Leaf).

The rail which takes place the sliding of leaves stain steel to avoid the wear of the piece.

Opening possibilities:
• Sliding: 2, 3, 4 and 6 leaves.

Finishes:
• Polyester powder coated colours;
• Wood effect paint;
• Anodizing.
