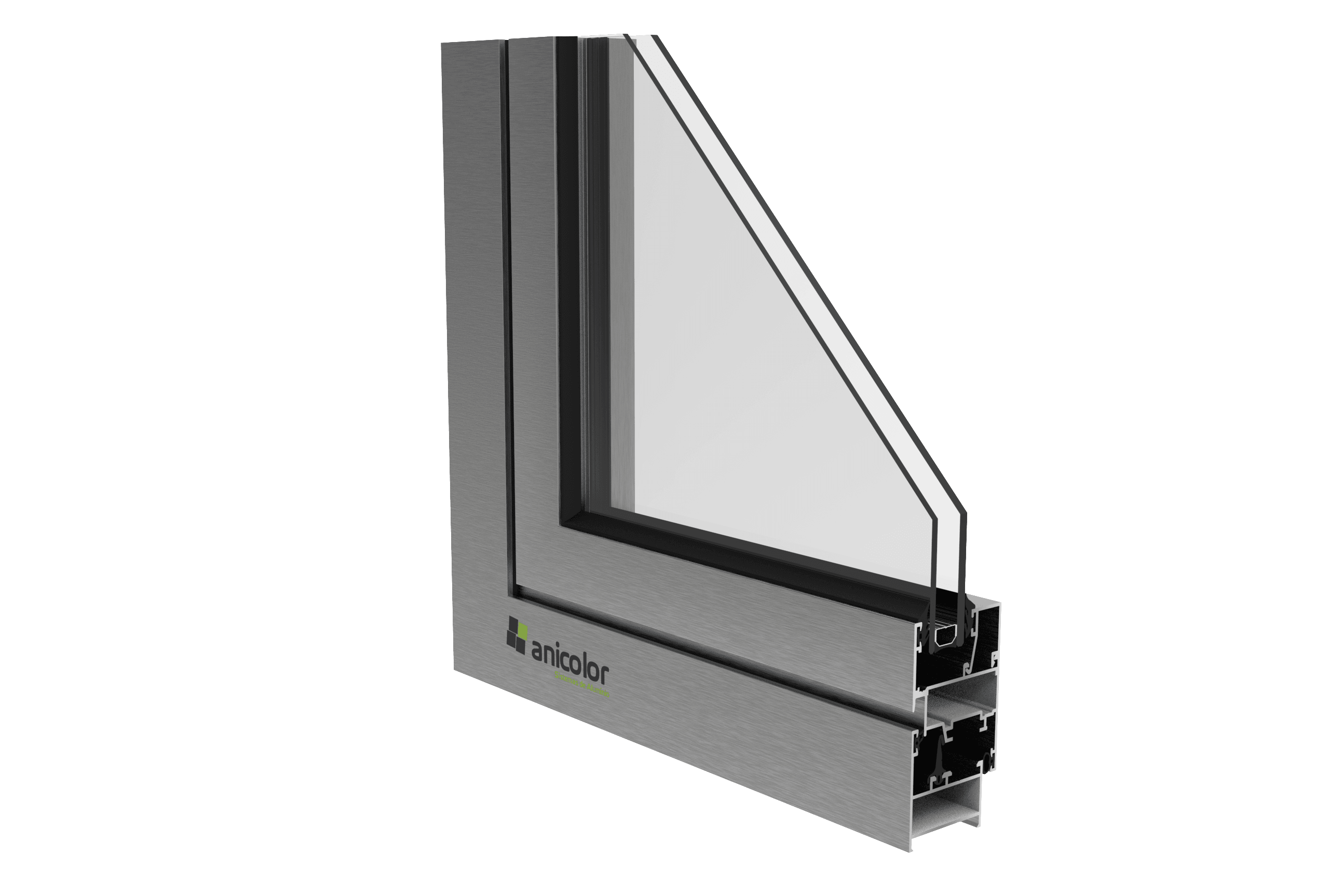

AZ
40mm
Opening system with european chamber and central sealing in EPDM.
The sections of rim and fitment are 40 mm and 47 mm respectively, with an average thickness of aluminium profiles of 1,5 mm.
This system also presents the denominated "Tradition Module", with sections of rim and fitment of 79 mm and 47 mm respectively.
There are straight, curved or oval sheet possibilities.
Opening possibilities:
• Interior opening: folding, tilt/turn, harmonium, parallel tilt.
• Exterior opening: folding, projecting-sliding, pivoting.
Finishes:
• Polyester powder coated colours;
• Wood effect paint;
• Anodizing.
Classes on test bench (EN 14351-1):
• Air permeability (EN 1026): Class 4
• Water tightness (EN 1027): Class 9A
• Wind resistance (EN 12211): Class C5
Coefficient thermal transmittance of 2 sheets leaf*
• Uw = 3,56 (W/m2.K)
Acoustic attenuation coefficient of 2 sheets leaf*:
• Rw = 33 dB (C = -0; Ctr = -4)
* Window of 2 sheets 1,20m x 1,50m with glass 4/12/4
(Ug = 1,8 W/m2K; g = 0,52)
Areas of application according to RCCTE (function of Ug): I1 ,I2, I3, V1, V2, V3
